BTA Serie

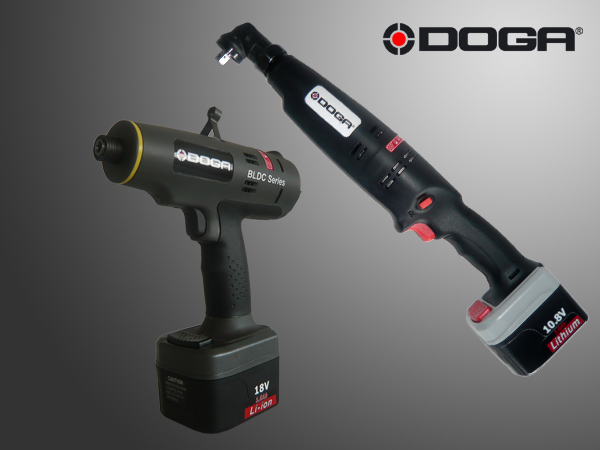

Shut-off angle nutrunners with brushless motor

Powerful lithium-ion battery for longer operating time and life duration
Efficient brushless motor for optimized durability (no maintenance required – less spare parts cost)
Studied ergonomy to improve the comfort of the operator – zero gravity
Smart reverse button for quick operation
LED lights to work even in dark area for better comfort
OK/NOK level of charge LED feedback signal for the operator
automatic stop before the battery is too much discharged
Color ring to clearly identify the tools
Reliable sliding battery system easy to handle increasing the productivity.

Shut-off pistol type with brushless motor and speed control (see option)

Powerful lithium-ion battery for longer operating time and life duration
Efficient brushless motor for optimized durability (no maintenance required – less spare parts cost)
Studied ergonomy to improve the comfort of the operator with soft grip reducing vibration
Smart reverse button for quick operation
LED lights to work even in dark area for better comfort
OK/NOK level of charge LED feedback signal for the operator
automatic stop before the battery is too much discharged
Color ring to clearly identify the tools
Reliable sliding battery system easy to handle increasing the productivity
Adjustable rotation speed through speed programmer (delivered in option)

The page can not be displayed correctly if you use Internet Explorer!

Model	Voltage (V)	Drive size (Inch)	Torque range (Nm)	Speed (rpm)	Weight w/o battery (Kg)	Code
BTA 10-8 HD 1/4	10,8	1/4 Hex.	2 to 8	850	1,3	6-1056012
BTA 10-8 SD 1/4	10,8	1/4 Sq	2 to 8	850	1,3	6-1056013
BTA 10-16 HD 1/4	10,8	1/4 Hex.	5 to 16	330	1,3	6-1056014
BTA 10-16 SD 1/4	10,8	1/4 Sq	5 to 16	330	1,3	6-1056015
BTA 10-16 HD 3/8	10,8	3/8 Sq	5 to 16	330	1,3	6-1056016
BTA 14-30 SD 3/8 - 400	14	3/8 Sq	8 to 30	400	1,3	6-1056017
BTA 14-30 SD 3/8 - 250	14	3/8 Sq	8 to 30	250	1,3	6-1056018
BTA 10-10 SD 3/8 - 240	10,8	3/8 Sq	2 to 10	240	1,3	6-1056019

Designation	Code
Battery B108LI-30 10,8 V 3 Ah	6-1056028
Battery BB144LI-30 14 V 3 Ah	6-1056029
CR 14 - BTA battery charger	6-1056032
Power supply cable 220 V	6-1056030
Torque adjusting screwdrivers	6-1056031
Red ring	6-1056033
Yellow ring	6-1022000
White ring	6-1056034
3/8 Sq drive angle head kit	6-1056035
1/4 Sq drive angle head kit	6-1056044
1/4 Hex drive angle head kit	6-1056043
Rubbercover	6-1056041
Suspension bail	6-1056042
Spanner 28 mm	6-1056040

Designation	Code
Battery Lithium-ion BB 180LI-15 (18 V - 1,5 Ah)	6-1056004
Battery Charger CR 19 - BTP	6-1056005
220 V plug for battery charger	6-1056006
Torque adjusting screwdrivers	6-1056007
SP-18 V speed control box**	6-1056008
Blue ring	6-1056009
Red ring	6-1056010
Yellow ring	6-1056045
White ring	6-1056011
Rubbercover	6-1056046
Suspension bail	6-1056047
