Nyomatékmérők
Torque Testers

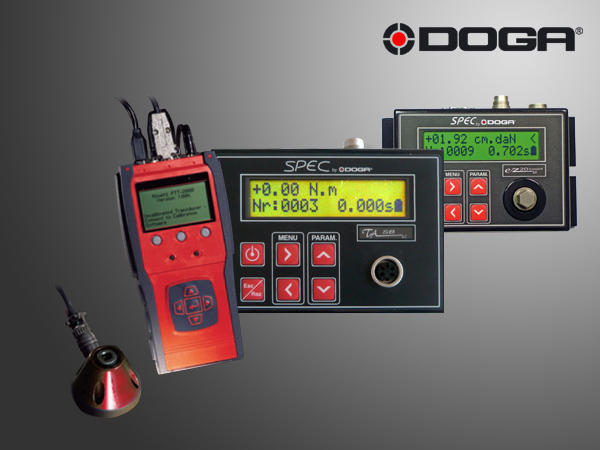

EZ Smart Series
Equipped with a built-in transducer the EZ series may be used to calibrate quickly and accurately every kind of fastening tools (torque wrenches, electric and air screwdrivers). Memorized readings can easily be transfered to any kind of computer or printer through RS232 C port.
)
- Easy to use scroll Menu
- External transducers may be plugged
- 500 readings memory
- RS232 output
- Mini/Maxi Torque limits with relay outputs
- Cm/Cmk statistics inside
- Pulse tools measuring mode
Equipped with a built-in static transducer the EZ series are used to calibrate quickly and accurately every kind of tightening tool. Reading memory can be transfered to any kind of computer or printer through its RS 232 output. Thanks to its built-in statistics program, Cm and Cmk can be immediatly know (according to AFNOR standard) and modified according to the requested tolerances.
Torque Read-Outs
TA Smart Series
)
- Easy to use scroll Menu
- 500 readings memory
- RS232 output
- Mini/Maxi Torque limits with relay
- Cm/Cmk statistics inside
- Impulse tools measuring mode
TA SMART Torque Read-Out features both user friendly program and very accurate electronics.
It is suitable with any 2mV/V static or rotary strain gauges transducer.
Thanks to its built-in statistics program, Cm/Cmk or Cp/Cpk can be immediatly known (according to AFNOR standard) and modified according to the requested tolerances.
| Model | Power Supply | Code |
| TA Smart V2 | 220 V / 9 volts cell | 4-7600284 |
TA SB Smart Series
)
- Easy to use scroll Menu
- 500 readings memory
- RS232 output
- Mini/Maxi Torque limits with relay
- Cm/Cmk statistics inside
- Impulse tools measuring mode
TA SB SMART Torque Read-Out features both user friendly program and very accurate electronics.
It is suitable with 5 volts brushless rotary transducer (SB Series see page 10).
Thanks to its built-in statistics program, Cp/Cpk can be immediatly known (according to AFNOR standard) and modified according to the requested tolerances.
| Model | Power Supply | Code |
| TA SB Smart V2 | 220 V / Battery | 4-7600286 |
DAQ Amplifier / Conditioner
)
- Programming and Acquisition though USB
- Real time Acquisition on Excel
- Limits with alarms
The DAQ electronic module enables torque measurements and acquisition directly on PC through USB port.
It is suitable with any static or rotary 2 mV/V strain gauges transducer, (NST and B Series - see page 8 & 9).
A PC software is delivered with for easy programming and data collection.
| Model | Power Supply | Code |
| DAQ | USB | 4-7600292 |
MTA Torque & Angle Analyser
)
- Transducers automatic recognition
- 7 measuring modes
- Suitable with Force, Torque, Angle Transducers
- Real time clock and USB interface
- Graphic functions on PC interface
- 5000 readings memory
- Delivered with 3 softwares without licence
- PC interface program
Calibration, tool test, graphic
Torque meter booloader - 3 Statistics program (via Excel)
Suitable with all our transducers (SB, B and NST Series) the MTA is a powerfull hand-held Force/Torque/Torque & Angle Analyser. It allows you to set up and create tool tests, save readings for PC transfer. It is the ideal solution to organize and store data collection for ISO and SPC documentation.
It may be connected simultaneously to 4 different transducers via a multiplexer. Use of bar code reader is also possible to select quickly the tool test for each of your tool on the assembly line.
| Model | Power Supply | Code |
| MTA | 220 V / 110 V / Battery | 4-7600010 |
Torque transducers
NST static transducers
)
NST static transducers are designed to check torque settings of your tools.
Suitable with our EZ SMART, TA SMART, DAQ and MTA torque read-out, NST transducers are robust, precise and easy to use.
Auto recognition (ARCII) when connected to the MTA.
)
B Series: Rotary transducers with brushes
)
Ideal to measure the torque really achieved on the joints, the B Series transducers are suitable with EZ smart testers, TA Smart read-out, MTA analyser and DAQ Amplifier.
Equipped with self-lubricating brushes and accurate ball bearings.
ARCII auto recognition with MTA analyzer.
Maximum rotation speed: 3000 rpm.
« A » torque transducers version is equipped for angle measurement.
SB Series: Brushless rotary transducers
Ideal to measure the torque really achieved on the joints, the SB Series transducers are suitable with TA SB Smart read-out and MTA analyzer. Equipped with accurate ball bearings.
ARCII auto recognition with MTA analyzer.
Maximum rotation speed: 12000 rpm until 18 Nm, 9000 rpm until 160 Nm and 7000 rpm until 1000 Nm.
« A » transducers version is equipped for angle measurement.
